Onyx Eclipse 60HL Gas Fire
£2,995.00
The Onyx Eclipse 60HL is a luxury portrait inset gas fire with ImmersiFlame™ triple-burner technology, EchoFlame™ Black Glass Lining and hand-painted Split Oak logs. Choose Natural Gas or LPG in Conventional Flue format, with up to 5.1kW output and thermostatic remote control.
Fir & TV Size Guide
Ideally, we think the fire should be slightly bigger than the TV. But there are no rules! Your fire can be smaller than the TV, the same width, or wider, and still look stunning.
| TV Size | Recommended Fire Size |
| 50" - 55" | 1250mm + |
| 60" - 65" | 1500mm + |
| 70" - 75" | 1800mm + |
| 80" - 85" | 2400mm+ |
Onyx Eclipse 60HL Gas Fire

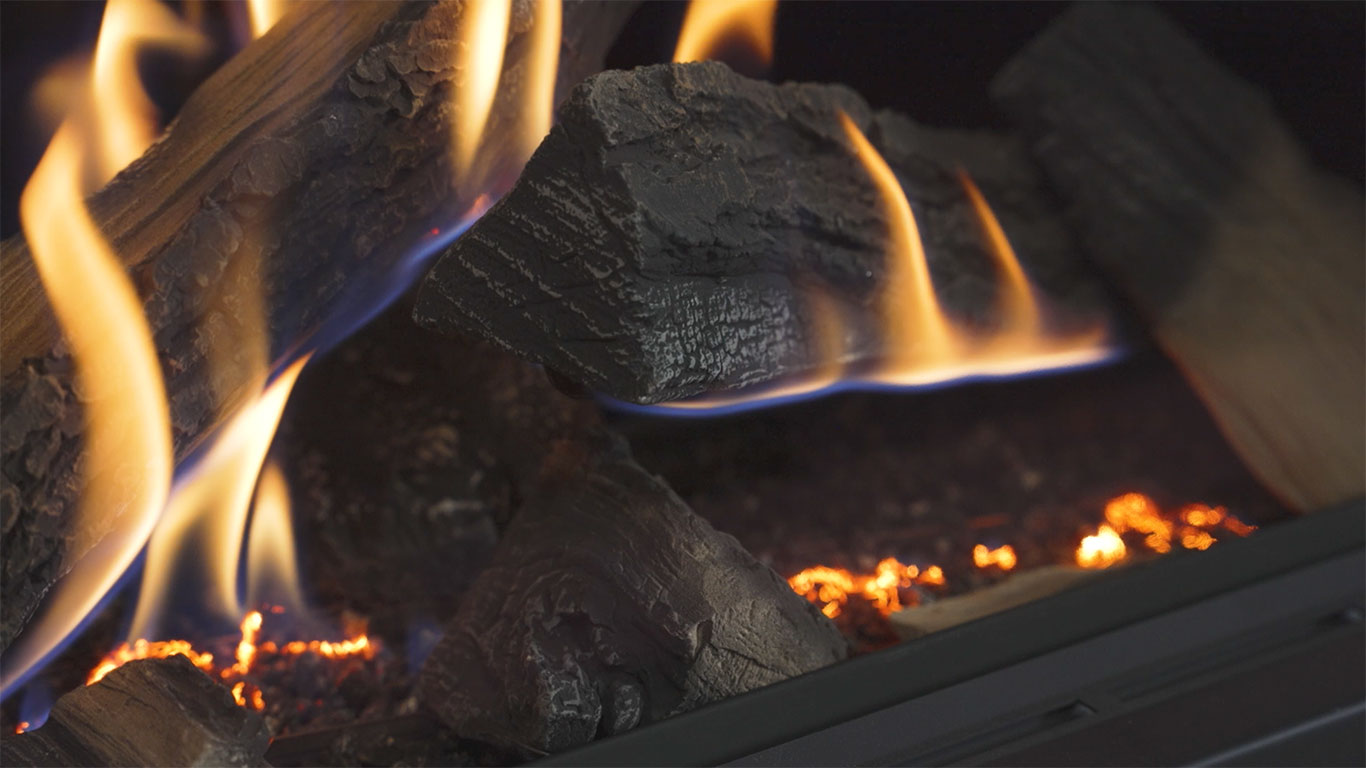

The Onyx Eclipse 60HL Gas Fire is a tall portrait inset fire designed for a clear, immersive view of the flames. Its ImmersiFlame™ triple-burner architecture conceals secondary burners within the raised Split Oak log effect, producing flames that rise around the logs for a layered wood-fire appearance.

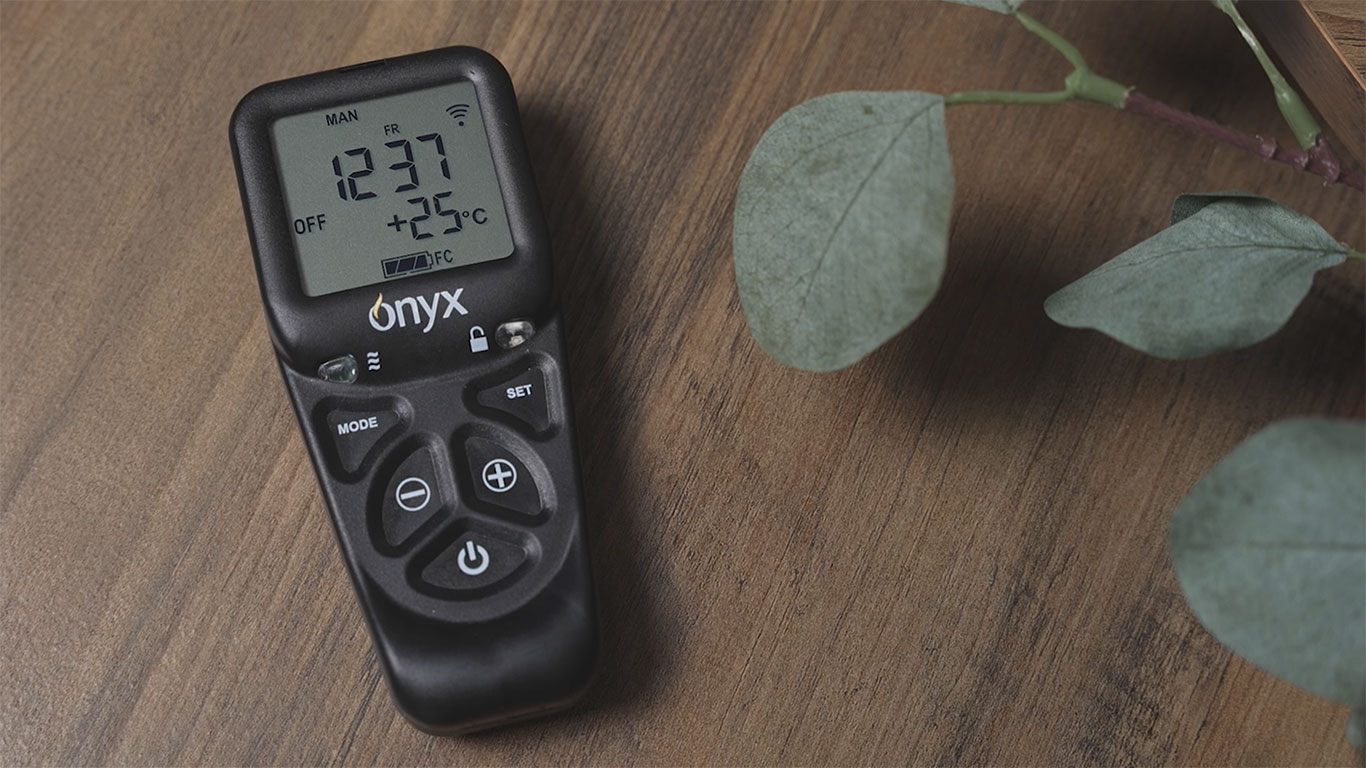

EchoFlame™ Black Glass Lining reflects the flame picture to increase depth, while premium non-reflective front glass helps minimise glare. The integrated control system includes a fully sequential thermostatic remote with ignition, flame and heat adjustment, shutdown, timer mode and a grip-lock safety sensor.
Key features
- Portrait conventional-flue inset gas fire
- Natural Gas or LPG models
- Up to 5.1kW heat output on the Natural Gas model
- Up to 78% efficiency and energy class D
- ImmersiFlame™ triple-burner architecture
- Hand-painted Split Oak log-effect
- EchoFlame™ Black Glass Lining
- Premium non-reflective glass
- Fully sequential thermostatic remote control
- Top or rear flue exit
Installation choices
The Eclipse 60HL can be installed as a minimalist frameless Edge fire or paired with the optional Matt Black Edge+ frame. Its portrait proportions also suit hearth-mounted installations within compatible stone mantels and prepared fireplace openings.
Technical dimensions
| Maximum appliance envelope | 729 × 836 × 326mm (W × H × D) |
|---|---|
| Viewing area | 590 × 593mm (W × H) |
| Flue type | Conventional Flue, top or rear exit |
Installation and warranty
This gas fire must be specified and installed by a suitably qualified Gas Safe registered engineer in the UK or an appropriately registered installer in the Republic of Ireland. The opening, flue condition and route, hearth or chamber, ventilation and clearances must be checked against the current installation instructions before purchase.
A ten-year extended warranty is available when purchased through an authorised Onyx retailer, installed correctly and registered within the required period. Annual servicing and full warranty terms apply.
| Dimensions | 72.9 × 32.6 × 83.6 cm |
|---|---|
| Product Range | |
| Fuel Type | , |
| Fire Configuration | Front-facing fires designed to be enjoyed from one side. |
| Installation Type | |
| Overall Width |
729mm |
| Overall Height |
836mm |
| Overall Depth |
326mm |
| Flame Technology |
EchoFlame™ Black Glass Lining Reflective black glass designed to enhance flame depth and intensity. ,ImmersiFlame™ triple burner Triple-burner technology creating a broad and immersive flame display. |
| Fuel Bed |
Hand-painted Split Oak log-effect |
| Control Type |
Remote Control |
| Maximum Heat Output |
Up–5.1kW (Natural Gas) |
| Flue Type | |
| Efficiency |
Up to 78% |
| Energy Rating |
D |
| Warranty |
10 Year Extended Warranty |
| Style |
