Dimplex Cassette 1000 Project Multi Optimyst Fire

The Dimplex Cassette 1000 Project Multi is a heater-free, four-sided Optimyst cassette with multicolour water-vapour flames, app and remote control, linking capability and crackling sound. A metal plate is supplied; the optional log set is not included.

Fir & TV Size Guide

Ideally, we think the fire should be slightly bigger than the TV. But there are no rules! Your fire can be smaller than the TV, the same width, or wider, and still look stunning.

TV Size Recommended Fire Size
50" - 55" 1250mm +
60" - 65" 1500mm +
70" - 75" 1800mm +
80" - 85" 2400mm+
13 People watching this product now!
SKU: 400001275 Category: Brand:
Description

Dimplex Cassette 1000 Project Multi Optimyst Fire

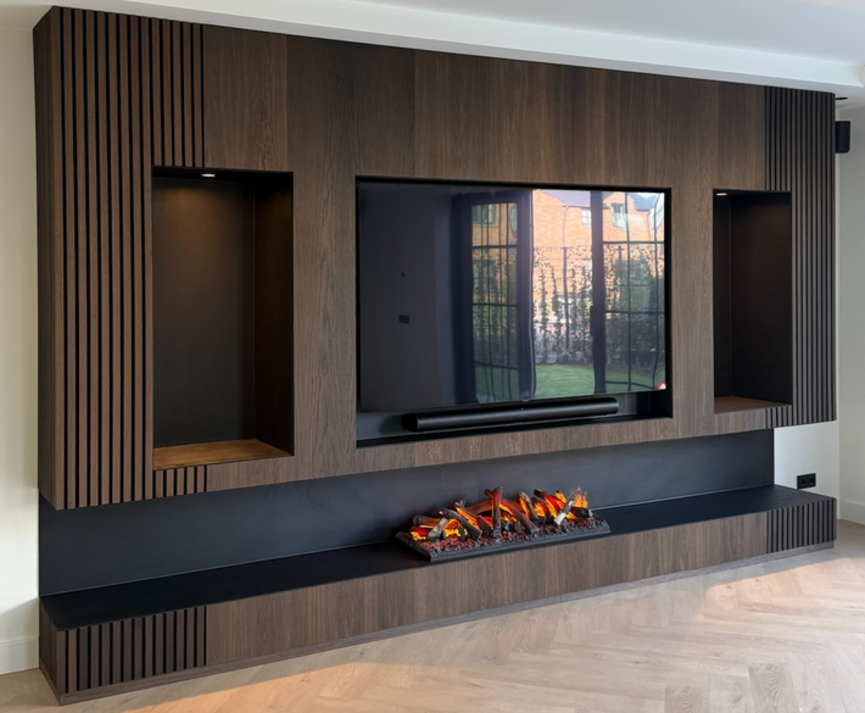

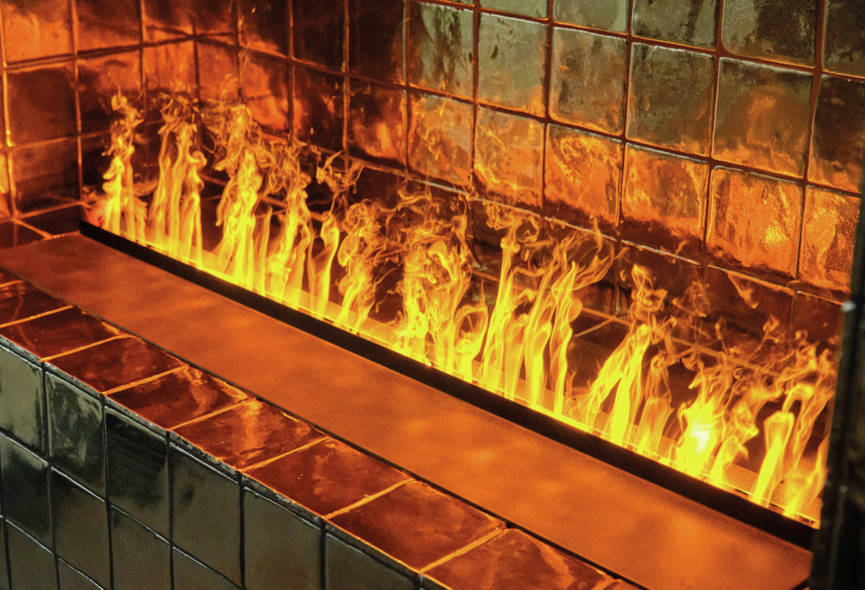

The Dimplex Cassette 1000 Project Multi uses patented Optimyst technology, combining cold water vapour with multicolour LED lighting to create an open, three-dimensional flame effect visible from every side. It can be used alone or linked with compatible cassettes to form a longer line of fire for media walls, see-through fireplaces and custom installations.

Control flame intensity, colour and the adjustable crackling sound from the included remote, the controls on the cassette or the Flame Connect app. This is a flame-effect-only appliance and does not include a heater.

Please note: a contemporary metal plate is supplied. A log-effect fuel bed is not included; an optional premium oak log set is available separately.

Key features

  • Four-sided Optimyst water-vapour flame effect

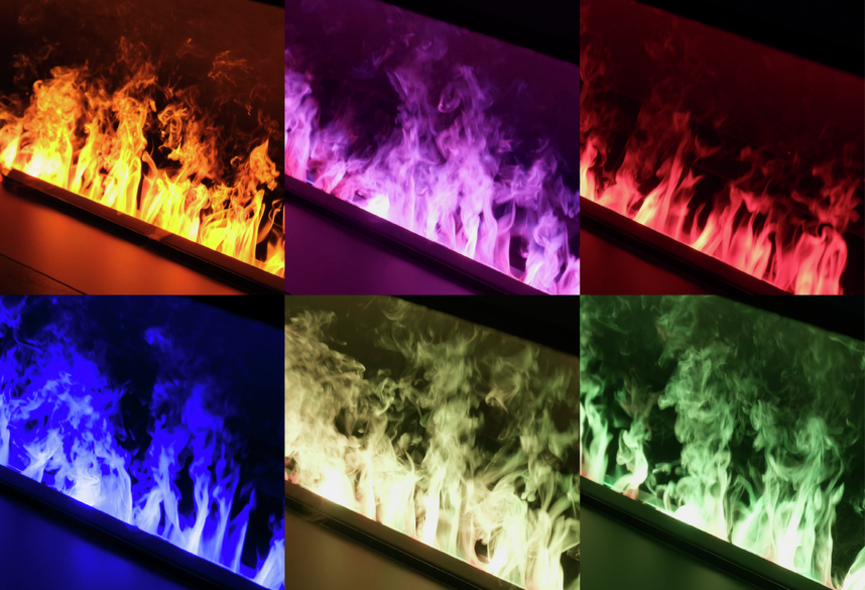

  • Multicolour LEDs with adjustable flame intensity and colour
  • Flame Connect app, handheld remote and manual controls
  • Adjustable crackling log sound
  • Compatible cassettes can be linked; up to five units may share one power outlet
  • The Project version connects to a suitable mains water supply, avoiding manual tank refills and making it well suited to integrated domestic or commercial schemes.
  • Flame effect only; no heat output

Technical specifications

Overall width 1017mm
Installed height range 225-270mm
Body depth 300mm with metal plate; 354mm with optional log bed
Power consumption 470W
Electrical supply 230V / 50Hz
Required ventilation 420cm² minimum
Power cord 1.5m IEC lead
Weight 15kg
Warranty 2 years

Installation

The cassette must be installed level, securely supported and provided with at least 420cm² of unobstructed free ventilation so the electronics remain cool and the mist can rise freely. A suitable mains water connection and service access are required. Follow the current Dimplex installation instructions.

Weight 15 kg
Dimensions 101.7 × 30 × 27 cm
Product Range

Fuel Type

Fire Configuration

Statement fires designed to provide views from all four sides.
Installation Type

Overall Width

1017mm

Overall Height

225-270mm

Overall Depth

300mm

Finish

Black

Flame Technology

Optimyst Multi

Modular Optimyst technology designed for larger bespoke flame displays.
Fuel Bed

Metal plate; optional premium oak log set

Control Type

App Control

,

Manual Control

,

Remote Control

Maximum Heat Output

No Heat

Warranty

2 Year Manufacturer Warranty

Model Reference

CAS1000P-RGB

Style
